Function and Use

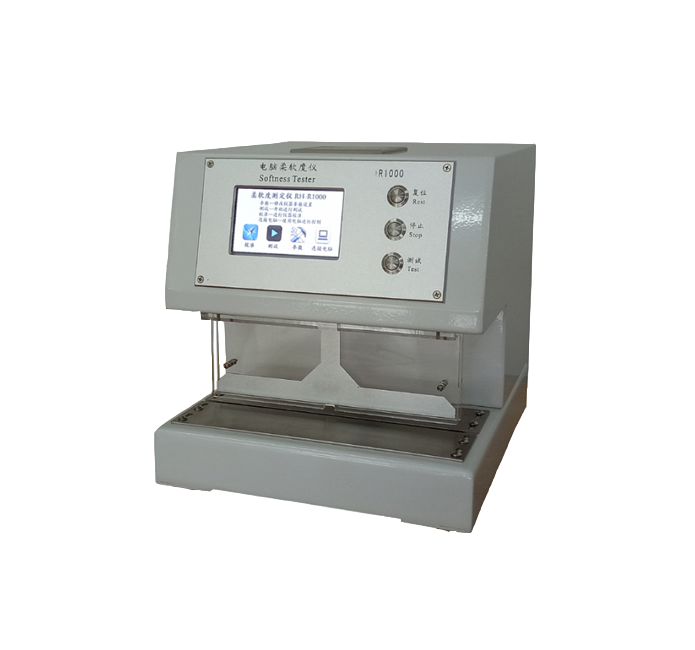

The RH-R1000 computer softness tester of Guangzhou Shounuo Scientific Instrument Co., Ltd. is a basic instrument specially used for softness testing of toilet paper, tobacco flakes, fiber fabrics, etc. according to the principle of the American Handle-O-Mete instrument

Conforms to standards

T498Su, GB/T8942, YC/T16, QB/T1060

Instrument Features

1. High-precision force sensor is used to ensure that the test accuracy error is within ±1%. Better than the ±3% specified in the standard.

2. Stepper motor control is adopted, the probe travel process is accurate and stable, and the measurement results have good repeatability.

3. Touch screen Chinese display, friendly human-machine interface operation, fully automatic test, test data statistical processing function, micro printer output. The test results are automatically memorized and displayed, reducing human errors, easy to operate, and stable and correct results.

4. The instrument is equipped with special calibration weights and levers for easy measurement and calibration.

Technical parameters

Probe penetration depth: 8mm

Slit width of sample table: 5mm, 6.35mm, 10mm, 20mm

Accuracy: ±1%

Probe travel speed: 1.2±0.24mm/s

Parallelism error of both sides of the slit: ≤0.05mm

Weight: about 15kg

Measuring range: (10 -1000)mN

Resolution: 1mN

Dimensions: 323×281×302mm Power supply: AC220V, 50Hz

Instrument configuration

Host, other accessories
