Standards Compliant
GB 10440, GB 18454, GB 19741, GB 17447, ASTM 1140, ASTM F2054, ISO 11607-1, ISO 11607-2, GB/T 17876, GB/T 10004,GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002
Application Field
Packaging/Food/Medicine/New material/Chemical/Printing

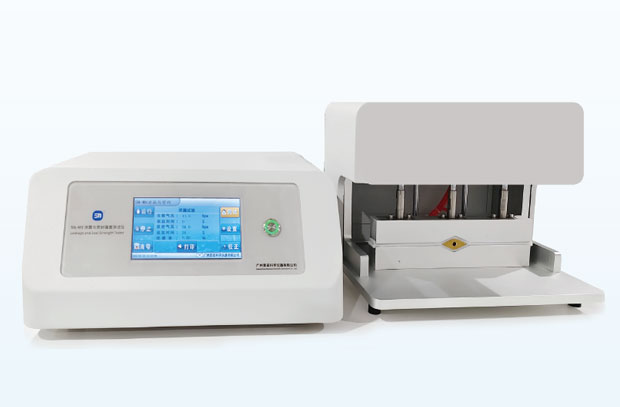

SN-XME Leakage and Seal Strength Tester: It is used to detect the sealing condition, leakage amount and inflation burst strength of plastic packaging bags, and is applied to industries such as packaging, food, pharmaceuticals, and daily chemicals.
Inflate and pressurize the packaging bag and maintain the pressure for a certain period of time. Measure the change in the internal pressure of the bag to detect the sealing condition of the packaging bag, and calculate the leakage amount. Inflate and pressurize the packaging bag until it bursts, and measure the maximum required pressure to evaluate its burst strength.
1.Pneumatic fixture ensures a good sealing effect at the bag mouth.
2.Full-automatic testing, including automatic pressurization and pressure maintenance, automatic calculation, and automatic stop.
3.Manual pause and manual end functions are available.
4.Liquid crystal display screen shows the test data and working status.
5.Built-in printer can print the test report.
6.Customizable fixtures can be provided to adapt to bag mouths of different sizes and specifications.
|
Item
|
Parameter
|
|
Sealing test range
|
0 - 1MPa
|
|
Leakage test range
|
0 - 50KPa
|
|
Precision
|
0.5%
|
|
Pocket size range
|
0 - 300mm (other sizes can be customized)
|
|
Air source
|
Compressed air, 0.4 - 0.9MPa
|
|
Air interface
|
Φ8mm air pipe
|
|
Net weight
|
25kg
|
|
Power supply
|
AC 220V/50Hz
|
|
Fixture size
|
385mm×220mm×295mm (other sizes can be customized)
|
Instrument Configuration
Main unit (with pneumatic fixture), power cord, air tube
Deliver,Shipping And Serving
Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.
Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.
In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
