Application Field
Packaging/Food/Medicine/New material/Chemical/Printing
1.Adopting mechanical contact measurement, uneven thickness of packaging materials will affect properties such as barrier performance and tensile strength.
2.Implementing high-precision control of material thickness is also an important means to ensure quality and control costs.
3.The measurement result is digitally displayed with a zero-clearing setting, which is convenient for eliminating measurement errors. It is mainly used for plastic films.
4.It can be used for direct measurement or comparative measurement of paper, etc., and can also be used for the detection of geometric dimension and form and position deviation, as well as the monitoring of feed rate and online detection during the machining process.

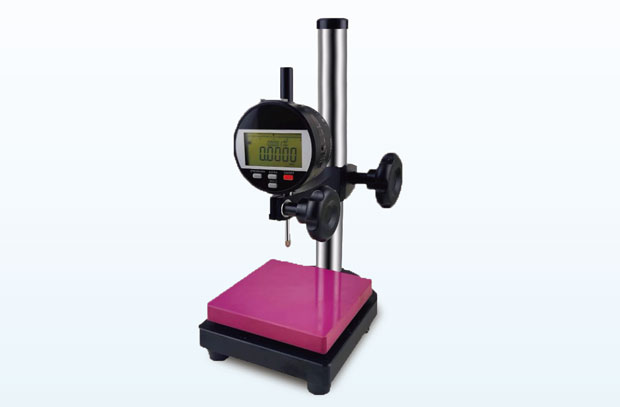

The testing accuracy of the mechanical thickness gauge mainly depends on the accuracy of the displacement sensor. The environmental temperature and wind speed will affect the accuracy of the sensor
1.The universal gauge base is equipped with an air damping device. The measurement is stable and reliable. It integrates optics, mechanics, electricity, and computing. It is small in size and convenient to use.
2.It is equipped with a precision-adjustable multi-functional measurement workbench. An RS232 communication interface is available for communication with a computer.
3.It uses a metrological grating as the length reference. It has high measurement accuracy and a fast response speed.
|
Item
|
Parameter
|
|
Measuring range
|
0.001 - 8mm
|
|
Measuring stroke
|
10mm
|
|
Minimum indication value
|
0.001mm
|
|
Indication error
|
≤2%
|
|
Indication variation
|
1μm
|
|
Measuring force
|
<1.5N
|
|
Surface roughness of measuring head
|
Ra<0.2μm
|
|
Working environment
|
Temperature 23±2°C, humidity 55±20%RH
|
|
Instrument Configuration
|
One main unit ,other accessories.
|
Deliver,Shipping And Serving
Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.
Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.
In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
