Standards Compliant
QB/T 2358,ASTN F 2029,YBB 00122003
Application Field
Packaging/Food/Medicine/New material/Chemical/Printing

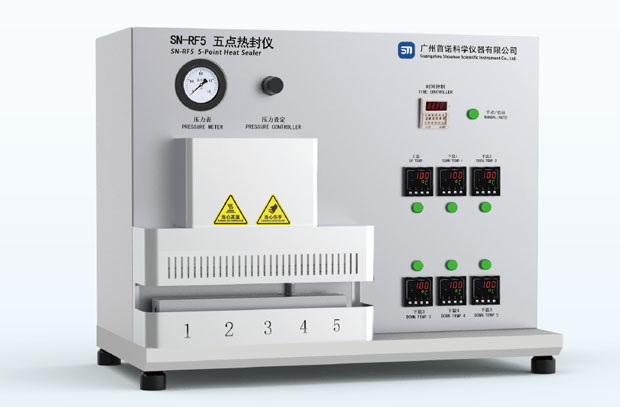

It is suitable for heat sealing tests of membranous materials such as various plastic films, plastic composite films, paper-plastic composite films, co-extruded films, metalized films, aluminum foils, and aluminum foil composite films.
Adopting the hot-pressing sealing method, place the sample to be sealed between the upper and lower heat sealing heads, and complete the sealing of the sample under the preset temperature, pressure, and time.
1.Dual temperature, dual control, and dual display. The three-axis cylinder is externally placed, and the downward pressure is more stable. All core components are imported.
2.The digital P.I.D temperature control technology can not only quickly reach the set temperature but also effectively avoid temperature fluctuations.
3.The wide range of temperature, pressure, and time control can meet various test conditions of users.
4.There are two test start modes, manual and foot-operated, and the anti-scalding safety design can effectively ensure the convenience and safety of users.
|
Item
|
Parameter
|
|
Heat - sealing temperature
|
Ambient temperature + 5 - 300°C
|
|
Temperature control accuracy
|
±1°C (0.1°C can be customized)
|
|
Heat - sealing time
|
0.01s - 99.99h
|
|
Heat - sealing pressure
|
0 - 8kg (0 - 0.8MPa)
|
|
Heat - sealing surface
|
35×10mm (lower sealing blade)× 5 sections (upper sealing blade with silicon pad can be customized according to customer requirements)
|
|
Heating mode
|
Double - side heating
|
|
Dimensions
|
700mm×400mm×560mm
|
|
Power supply
|
AC 220V/50Hz
|
Instrument Configuration
One main unit, one foot switch,a power cord
